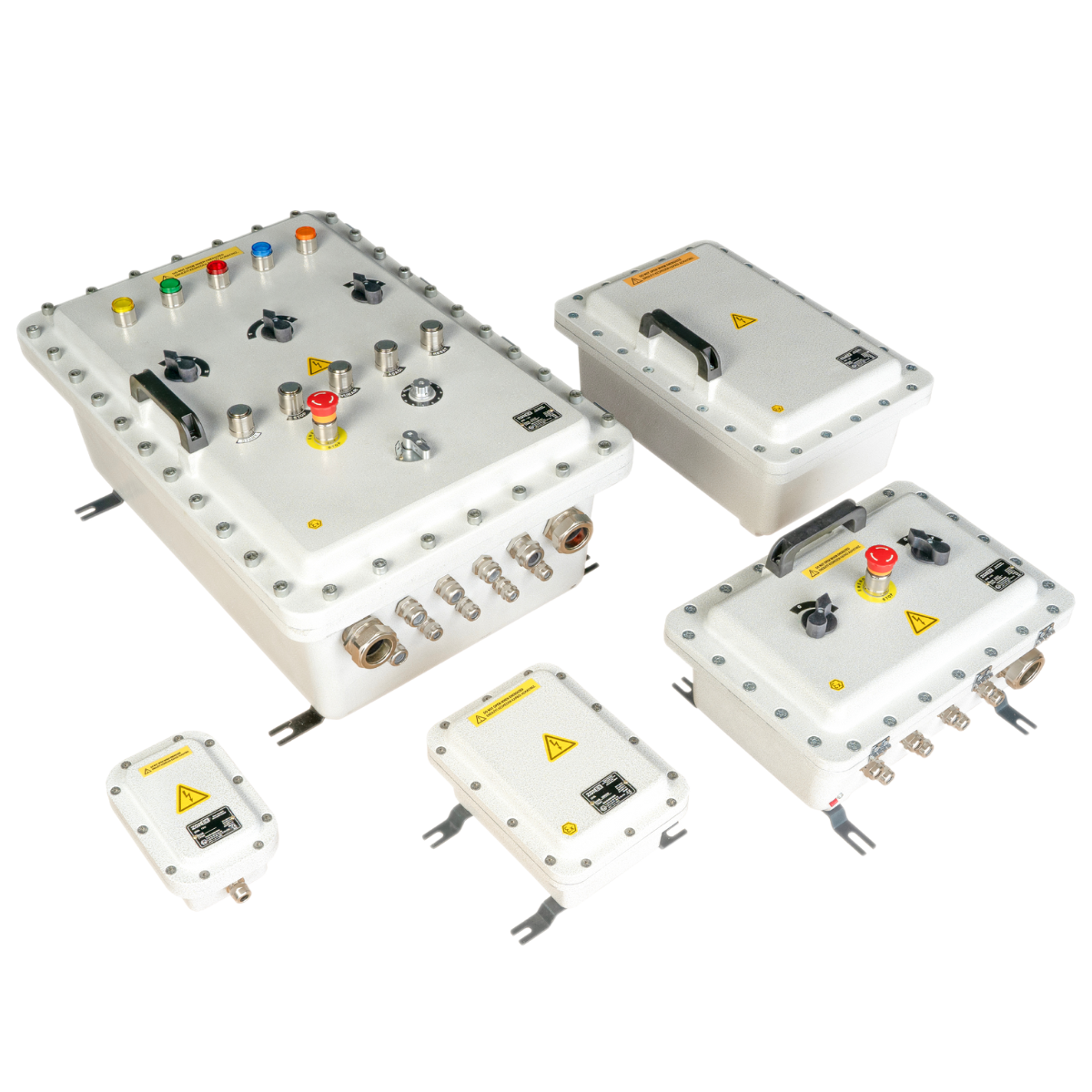

Ex-proof Junction Terminal Box

Product: Aluminium Body Junction Boxes
Certification: SCA 20 ATEX V068X
Marking: II 2G Ex db IIB + H2 T6 Gb II 2D Ex tb IIIC T85°C Db
Protection Class: IP65/IP66
Temp. Range:  -20 °C up to +55 °C
Standards: EN60079-0: 2018; EN60079-1: 2014; EN60079-31: 2014
Cable Entries: on request (see hole option table)
Material (Body): Low Cooper Aluminium Alloy
Gaskets: NBR oring on body
Paint: Electrostatic Powder Coat
Rated Voltage: 220/380V
Frequency: 50/60 Hz
Applications: Oil refineries, Chemical and petrochemical plants, Boiler rooms etc.
