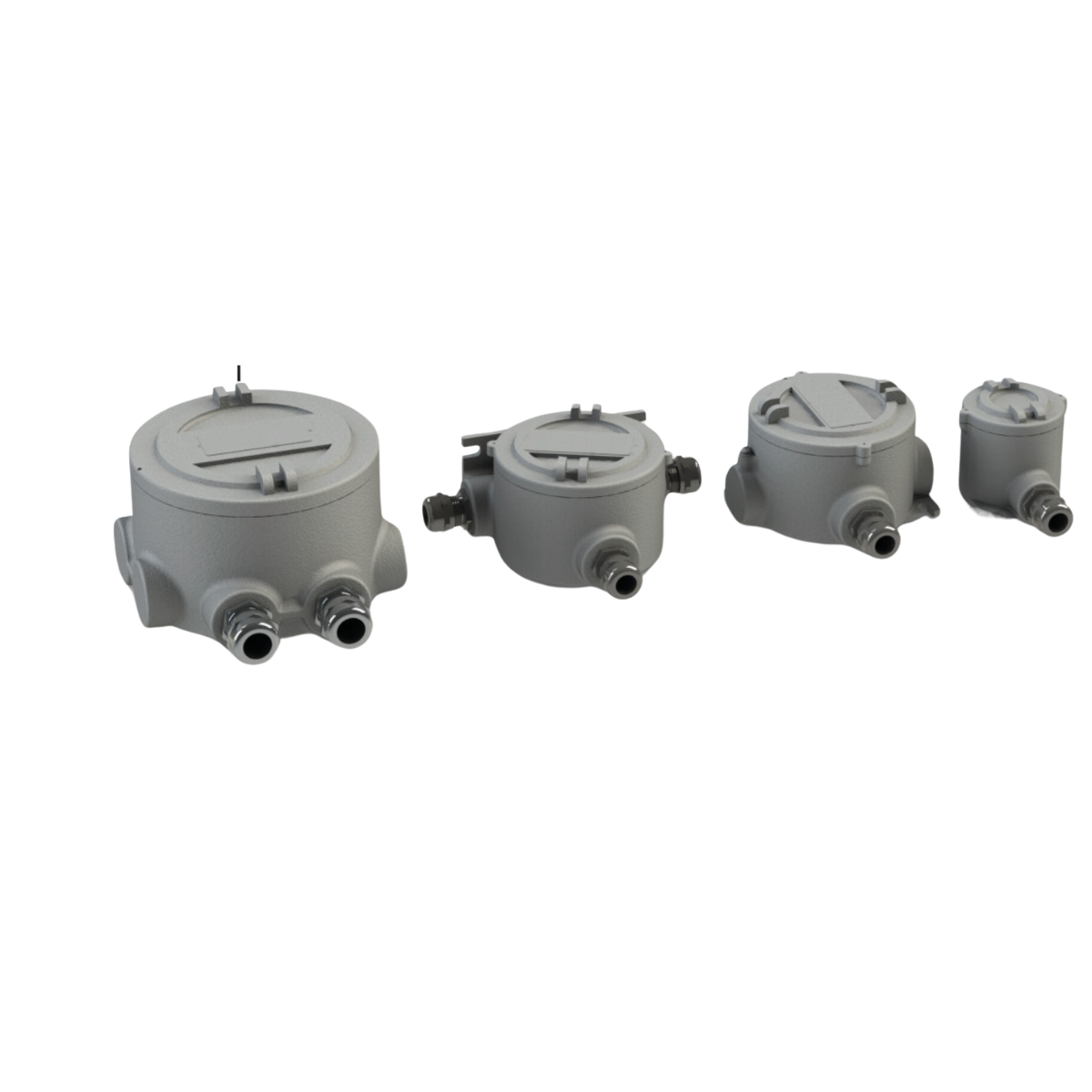

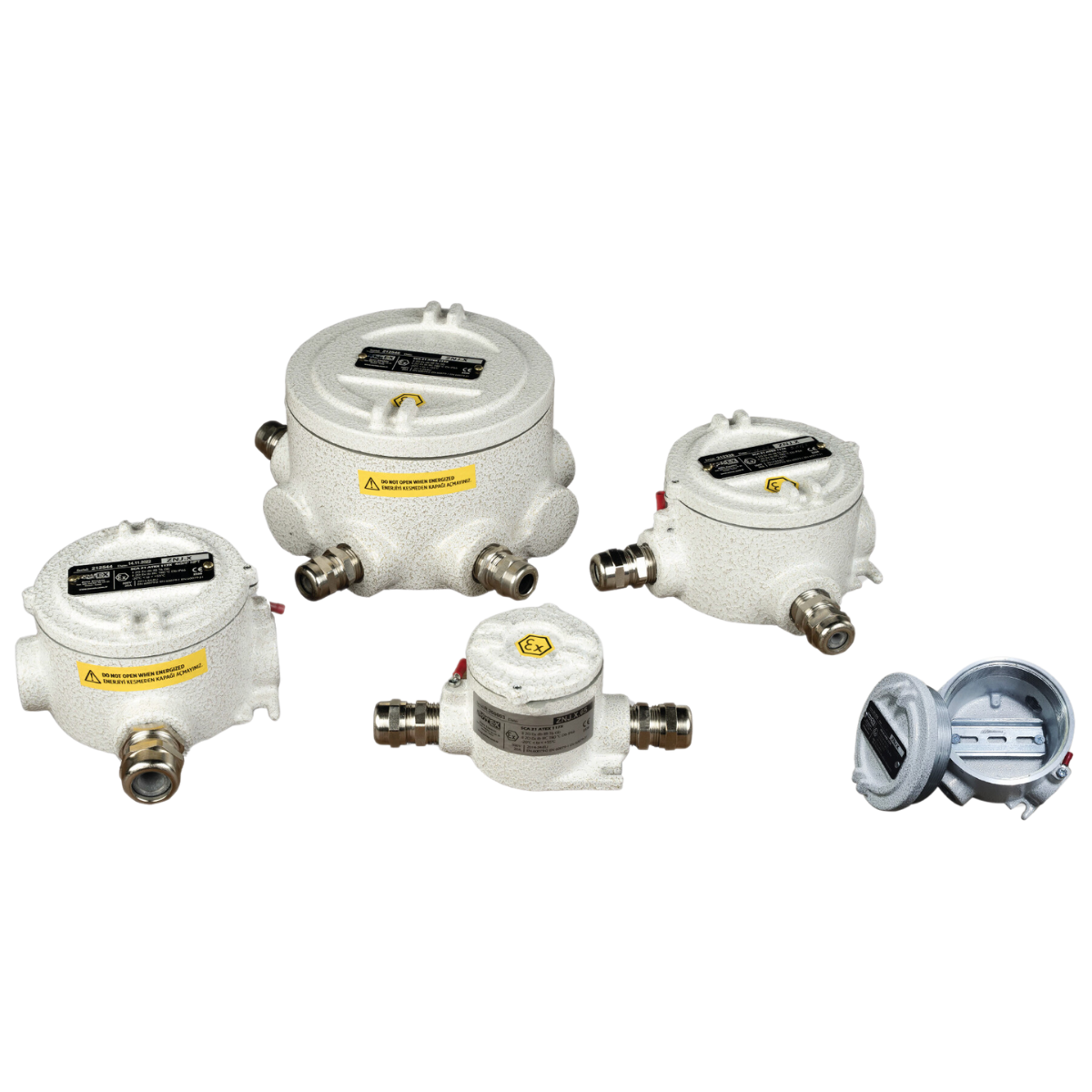

Ex-proof Junction Box

Product: Aluminium Body Junction Boxes
Certification: SCA 21 ATEX 117X
Marking: II 2G Ex db IIB T6 Gb II 2D Ex tb IIIC T80°C Db
Protection Class: IP66
Temp. Range:  -25 °C up to +55 °C
Standards: EN60079-0: 2018; EN60079-1: 2014; EN60079-31: 2014
Cable Entries: 1/2′ or 3/4′ (other options on request)
Material (Body): Low Cooper Aluminium Alloy
Gaskets: Silicone O-ring
Paint: Electrostatic Powder Coat
Rated Voltage: 24-380V
Frequency: 50/60 Hz
Applications: Oil refineries, Chemical and petrochemical plants, Boiler rooms etc.
