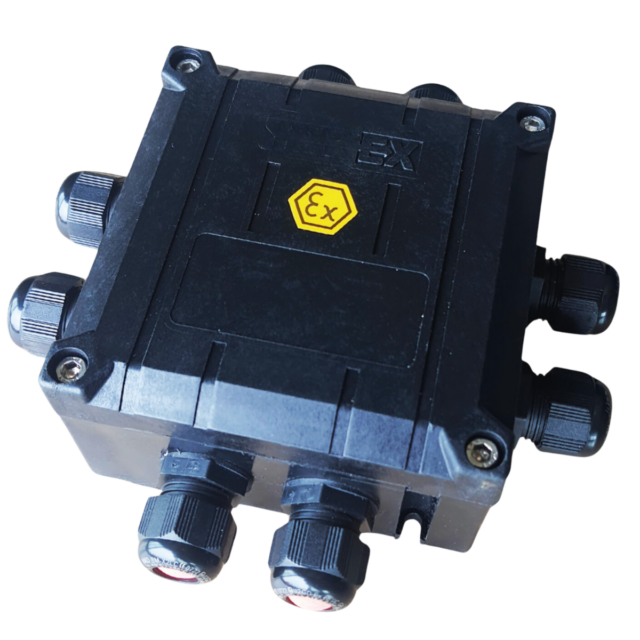

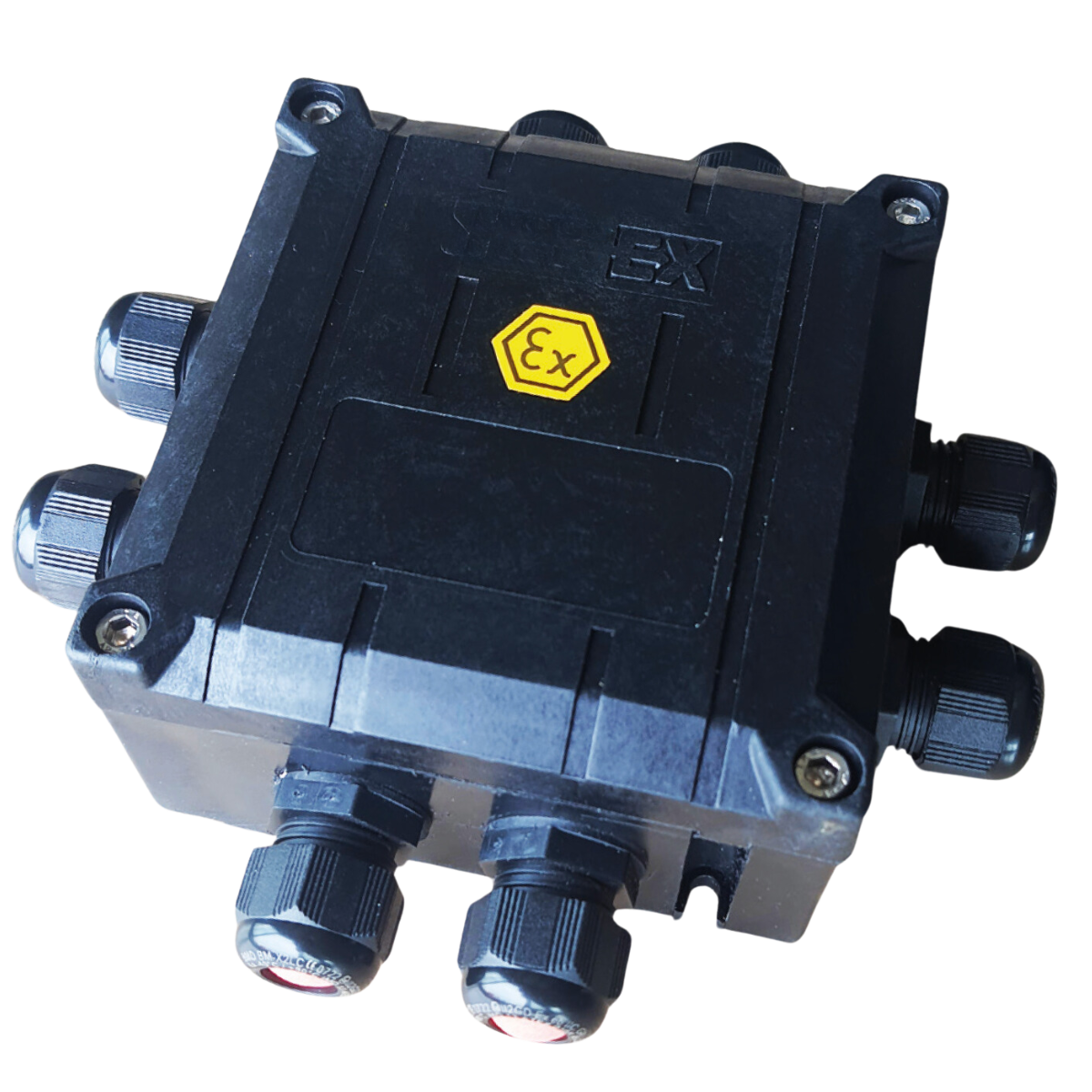

Ex-proof Nylon GRP Junction Box

Product: GRP Junction Boxes
Certification: SCA 24 ATEX 227X
Marking: II 2G Ex eb IIC T6 Gb II 2D Ex tb IIIC T80°C Db
Protection Class: IP66
Temp. Range:  -20 °C up to +55 °C
Standards: EN60079-0: 2018; EN60079-7: 2015/A1:2018, EN60079-31: 2014
Cable Entries: 2-8 M20 or M25 (other options on request)
Material (Body): Glass Reinforced Polyamide
Gaskets: NBR O-ring on body
Color: Black
Rated Voltage: Max. 500V
Rated Current: 12A,20,25,30A
Applications: Oil refineries, Chemical and petrochemical plants, Boiler rooms etc.
