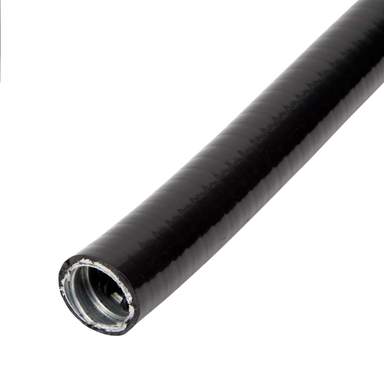

Liquid Tight Conduits

SKU: OLTGSC

₺0,00

Only dealers can see the prices. Click here for application

Material: Galvanised steel conduit with PVC cover, self
extinguishing and flame retardant LSF Cover (on request)
Main usage: All applications where machines and plant are
used. Any application where acids and oils are present or
where medium to high mechanical stress is needed
Temp range: -15°C till +70°C
Protection: IP67 with correct fittings.
Standards: BS EN 61386, High Impact Resistance
Colour: Black (Grey or other color on request)

• Full-Shrink packing

Attachments

Technical Datasheet

Declaration of Conformity

Product Order Detail

Description

Code	Code		Inner & Outer Dia. (mm.)	Coil Size (mt.)
Code	Metric	NPT	Inner & Outer Dia. (mm.)	Coil Size (mt.)
OLTGSC10	12	1/4′	10-16	30
OLTGSC12	16	3/8′	12-18	30
OLTGSC16	20	1/2′	16-21	30
OLTGSC21	25	3/4′	21-26	30
OLTGSC27	32	1′	27-33	30
OLTGSC35	40	1 1/4′	35-42	15
OLTGSC40	50	1 1/2′	40-48	15
OLTGSC52	63	2′	52-60	15
OLTGSC63	72	2 1/2′	63-73	7,5
OLTGSC78	75	3′	78-88	7,5
OLTGSC90	90	3 1/2′	90-101	7,5
OLTGSC102	100	4′	102-114	7,5

This product can also be supplied with a LSF cover. Please add “LSF” after part code.
Other coil sizes available upon request.Please add requested coil size after part code. For example: OLTGSC16-10

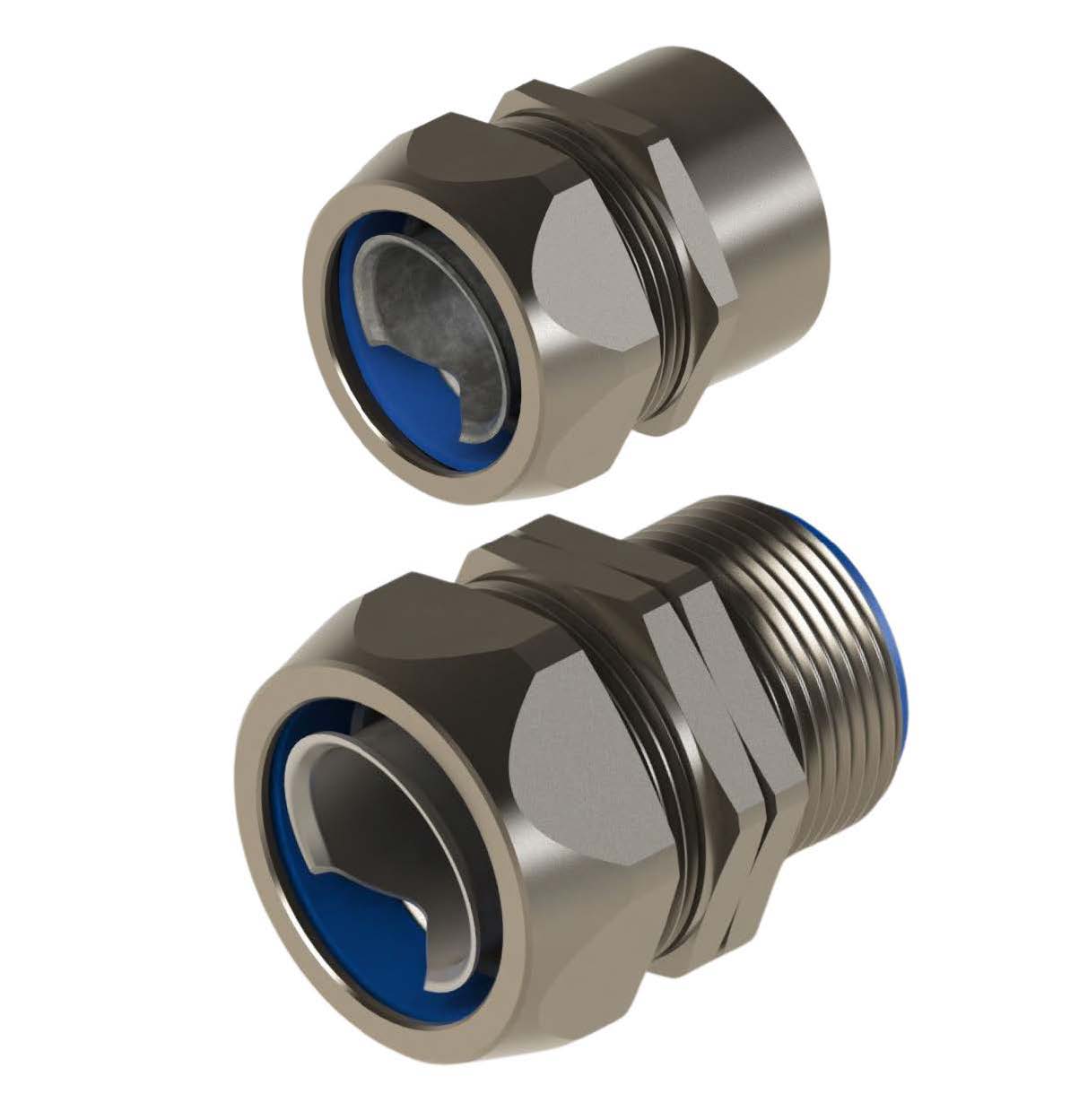

Fixed Liquidtite Glands

Code		Size
Metric	NPT	Metric	NPT
OBNFMLTCG12	OBNFNLTCG14	12	1/4′
OBNFMLTCG16	OBNFNLTCG14	16	1/4′
OBNFMLTCG116	OBNFNLTCG38	16	3/8′
OBNFMLTCG20	OBNFNLTCG12	20	1/2′
OBNFMLTCG25	OBNFNLTCG34	25	3/4′
OBNFMLTCG32	OBNFNLTCG1	32	1′
OBNFMLTCG40	OBNFNLTCG114	40	1 1/4′
OBNFMLTCG50	OBNFNLTCG112	50	1 1/2′
OBNFMLTCG63	OBNFNLTCG2	63	2′
OBNFMLTCG72	OBNFNLTCG212	72	2 1/2′
OBNFMLTCG75	OBNFNLTCG3	75	3′
OBNFMLTCG100	OBNFNLTCG4	100	4′

Swivel Liquidtite Glands

Code		Size
Metric	NPT	Metric	NPT
OBNSMLTCG12	OBNSNLTCG14	12	1/4′
OBNSMLTCG16	OBNSNLTCG14	16	1/4′
OBNSMLTCG116	OBNSNLTCG38	16	3/8′
OBNSMLTCG20	OBNSNLTCG12	20	1/2′
OBNSMLTCG25	OBNSNLTCG34	25	3/4′
OBNSMLTCG32	OBNSNLTCG1	32	1′
OBNSMLTCG40	OBNSNLTCG114	40	1 1/4′
OBNSMLTCG50	OBNSNLTCG112	50	1 1/2′
OBNSMLTCG63	OBNSNLTCG2	63	2′
OBNSMLTCG72	OBNSNLTCG212	72	2 1/2′
OBNSMLTCG75	OBNSNLTCG3	75	3′
OBNSMLTCG100	OBNSNLTCG4	100	4′

Material: Brass nickel plated
• Stainless Steel (on request)
