Nylon / Metal RJ45 Cable Glands

Name: Nylon / Metal RJ45 Cable Glands - OnElecs
SKU: RJCG
Availability: InStock

SKU: RJCG

₺0,00

Only dealers can see the prices. Click here for application

Material:
PA6 Nylon / Brass / Stainless Steel for Gland
TPV for Seal
NBR for o-ring (on request for nylon glands)
Temperature Range: -20°to +100 permanent
up to +150 intermittent
Flame Reterdancy: V2 according to UL94 / V0 (on request)

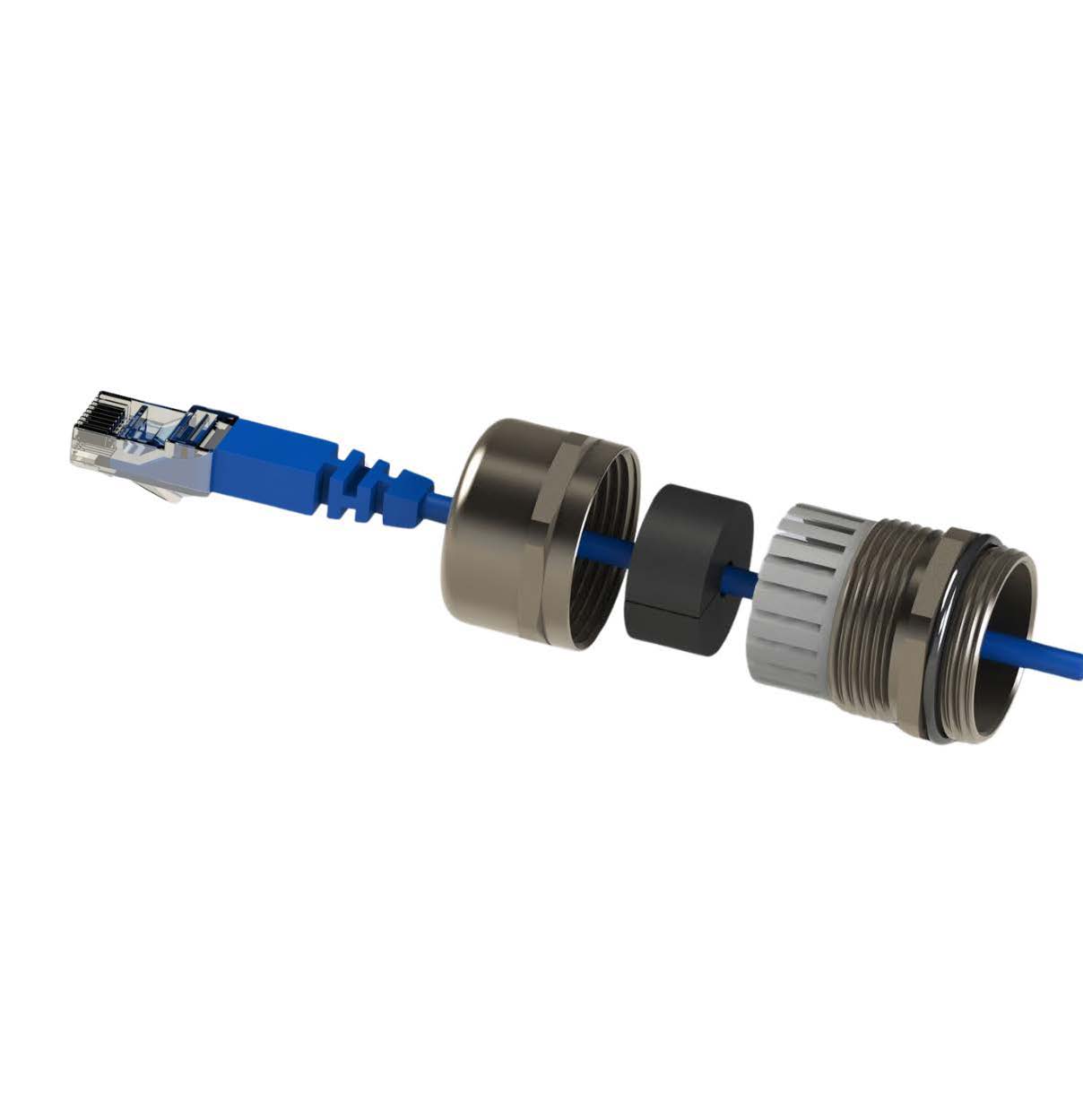

RJ45 PG/Metric/NPT threaded nylon or metal cable glands
TPV sealing provide strong Cable Grip, Strain Relief
and Superior Ingress Protection
With its unique design, provides excellent cable bending protection
Easy Assembly
Halogen Free
Accessories such as locknut and o-ring must be ordered separately.

Attachments

Technical Datasheet

Declaration of Conformity

Product Order Detail

Description

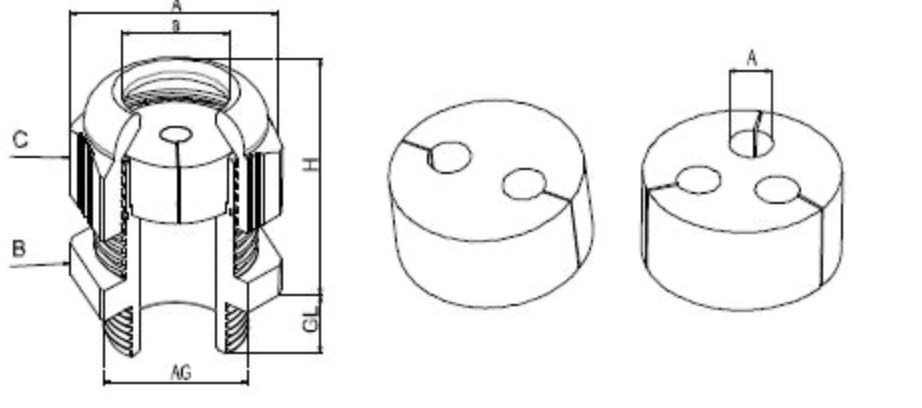

Entry Thread Size	Light Grey RAL7035 Code	A	H	GL	Wrench
Entry Thread Size	Light Grey RAL7035 Code	mm	mm	mm	mm.
PG13,5	PRJCG01-L	5	29	9	24
PG16	PRJCG02-L	5	33	9	27
PG21	PRJCG03-L	5	38	11	33
PG21	PRJCG04-L	2×5	38	11	33
PG21	PRJCG05-L	3×5	38	11	33
PG29	PRJCG06-L	5	41	11	42
M20x1,5	MRJCG01-L	5	29	10	24
M20x1,5	MRJCG02-L	5	33	10	27
M25x1,5	MRJCG03-L	5	38	10	33
M25x1,5	MRJCG04-L	2×5	38	10	33
M25x1,5	MRJCG05-L	3×5	38	10	33
M32x1,5	MRJCG06-L	5	41	10	42
	Brass Code
M20x1,5	MRJBCG01	5	26,5	8	22
M25x1,5	MRJBCG02	5	28	8	27-24
M32x1,5	MRJBCG03	5	31,5	9	34
M32x1,5	MRJBCG04	2X5	31,5	9	34
M32x1,5	MRJBCG05	3X5	31,5	9	34
M40x1,5	MRJBCG06	5	38	9	43-40
