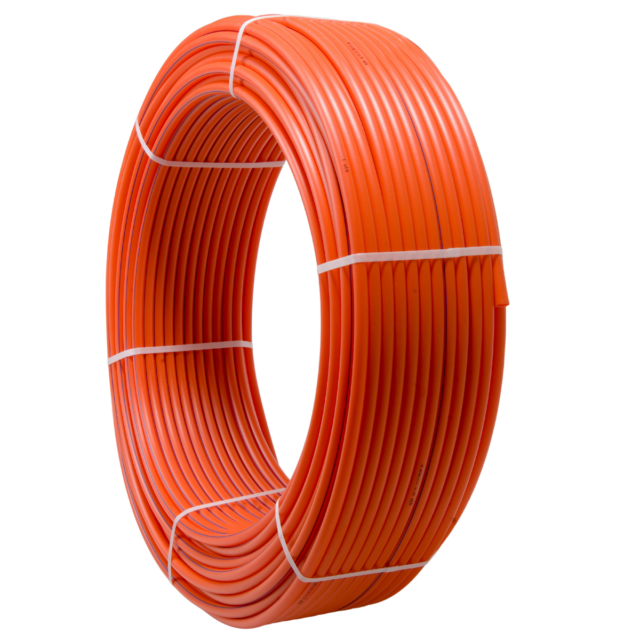

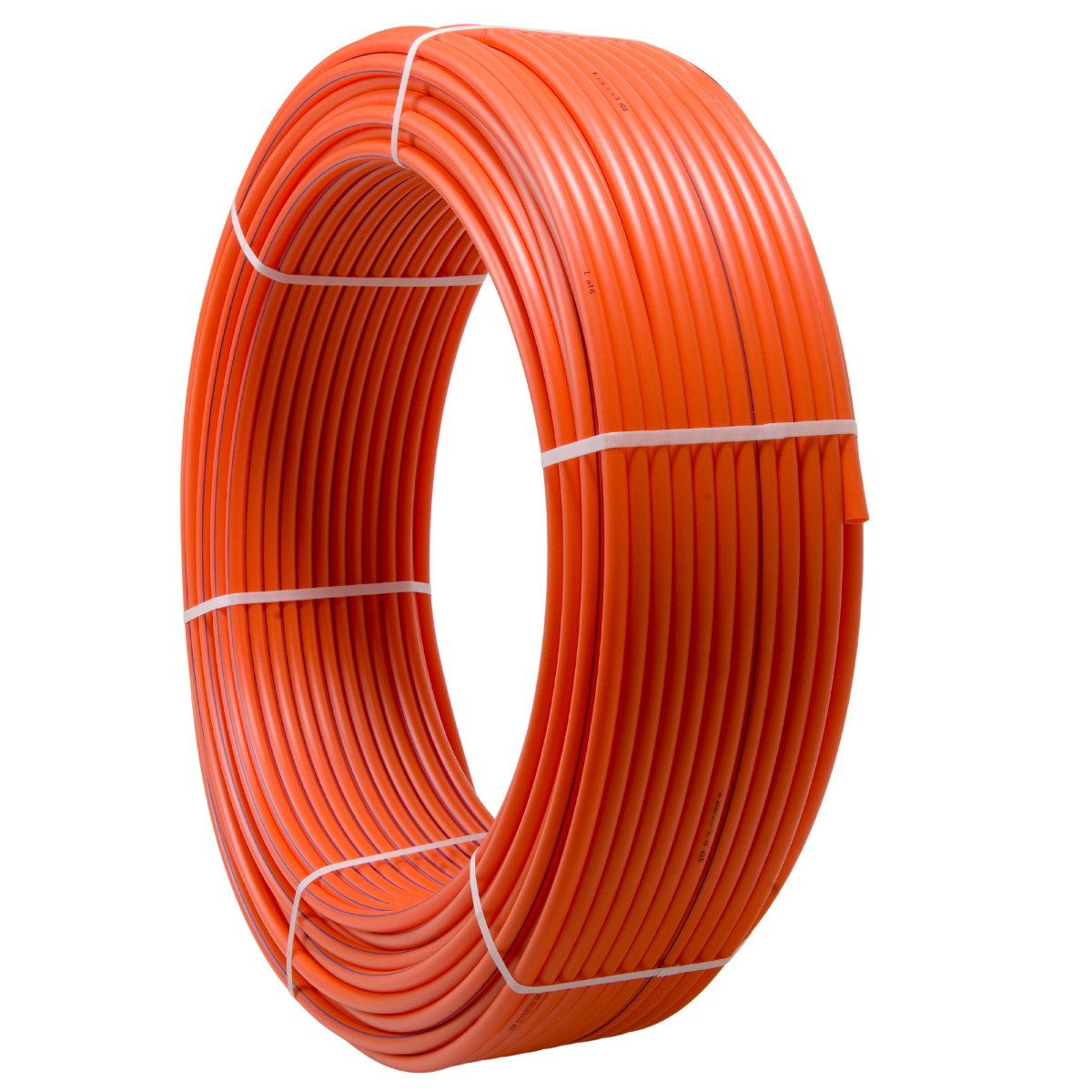

PE Coil Pipe (Halogen Free)

Name: PE Coil Pipe (Halogen Free) - OnElecs
SKU: OP
Availability: InStock

SKU: OP

₺0,00

Only dealers can see the prices. Click here for application

EN61386-21-22 Approved
Material: PE based Thermoplastic
Compression Resistance: 320 / 750 Newton 60 Sec. 23±2°C
Impact Resistance: 1 kg. / 2 kg. -100mm. -25°C
Temp range: -25°C +60°C.
Flame Retardant: Halogen Free
Main usage: Electrical Installations, Public
Buildings,Construction, Industries where high
mechanical protection is required
Colors: Any color available upon request

Attachments

Technical Datasheet

Declaration of Conformity

Product Order Detail

Description

Code		Nominal Size	Size (mm.)		Coil Length (mt.)
320N	750N	Nominal Size	Inner	Outer	Coil Length (mt.)
OP1-014	OP3-014	14		14	200
OP1-016	OP3-016	16		16	200
OP1-018	OP3-018	18		18	200
OP1-020	OP3-020	20		20	200
OP1-025	OP3-025	25		25	100
OP1-032	OP3-032	32		32	100
OP1-040	OP3-040	40		40	100
OP1-050	OP3-050	50		50	100
OP1-063	OP3-063	63		63	100
OP1-075	OP3-075	75		75	100
OP1-090	OP3-090	90		90	50

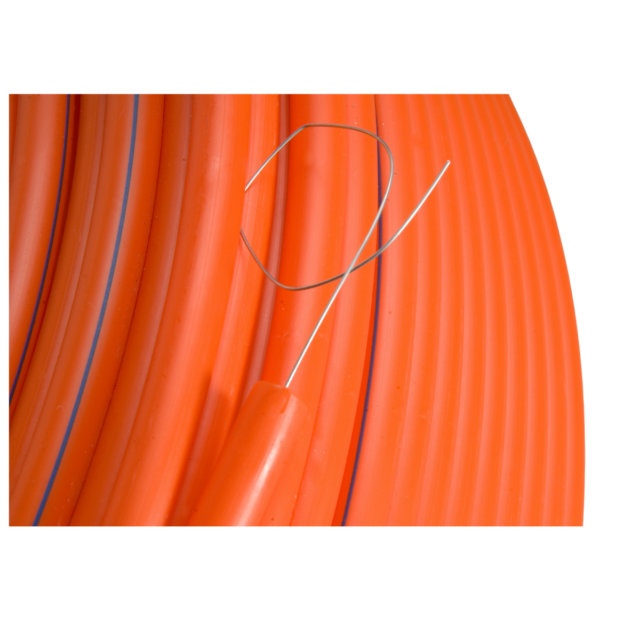

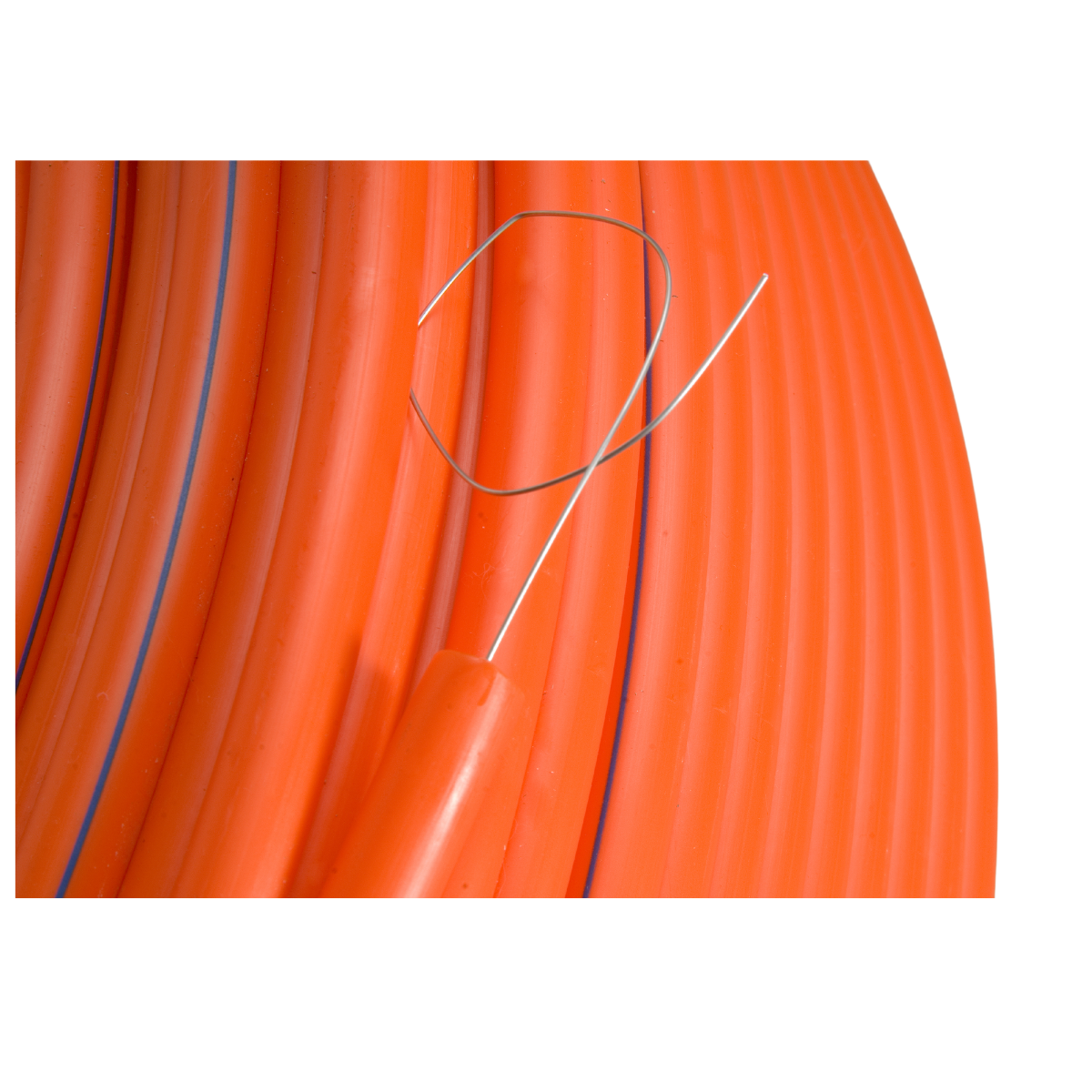

This product can also be supplied with a draw wire. Please add “dw” after part code
For other color Please add color name “OP1-025-Grey” after part code.
