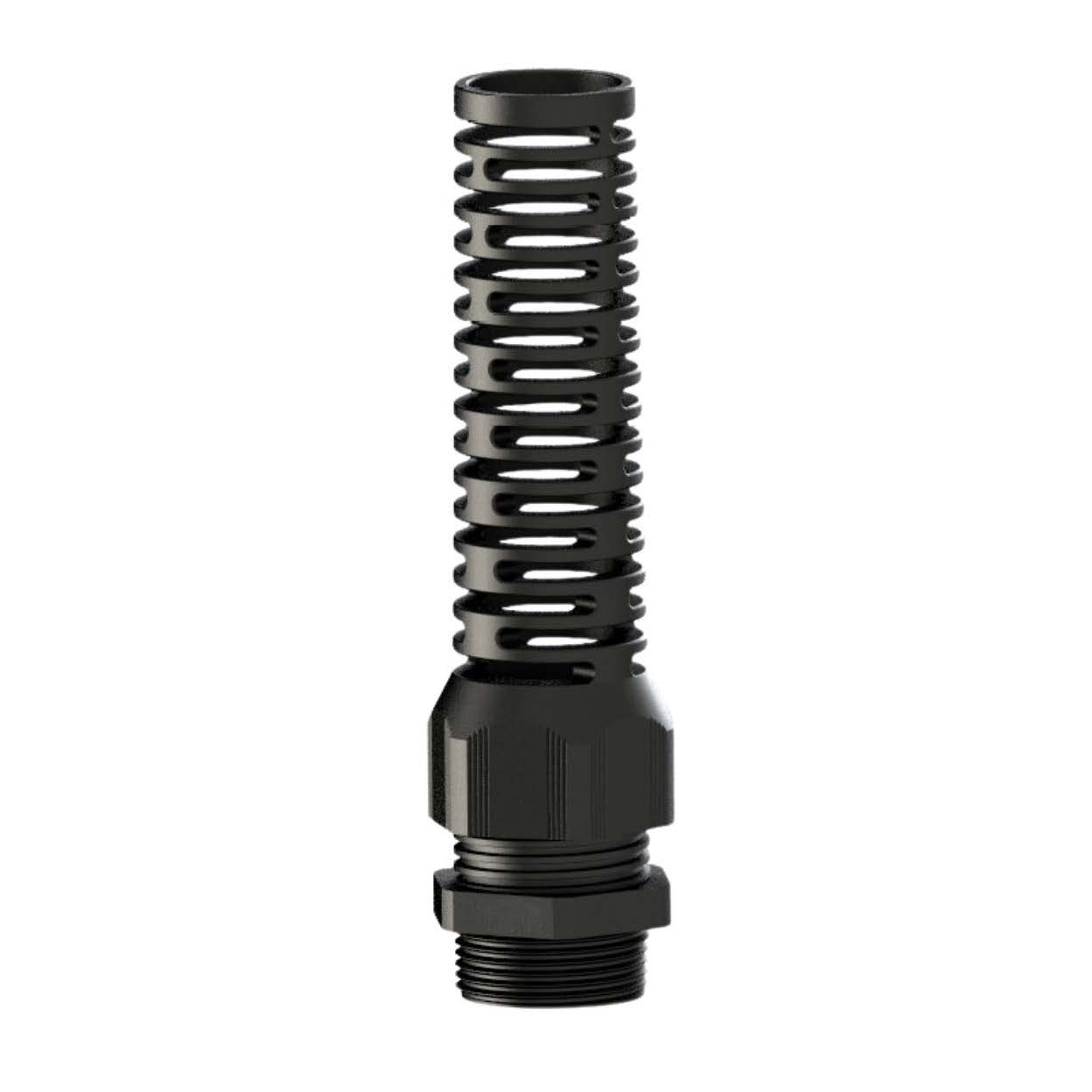

PG/Metric/NPT Strain Relief Cable Glands

Name: PG/Metric/NPT Strain Relief Cable Glands - OnElecs
SKU: SRCG
Availability: InStock

SKU: SRCG

₺0,00

Only dealers can see the prices. Click here for application

Material:

PA6 Nylon)for Gland
TPV for Seal
NBR for o-ring (on request) TPV for washer (on request))
Temperature Range: -20°to +100 permanent
up to +150 intermittent
Ingress Protection Rating: IP68 5 bar when it is used with o-ring or washer
Flame Reterdancy: V2 according to UL94 / V0 (on request)
Standards: EN50262 PG DIN40430

Standard PG/Metric/NPT threaded nylon cable glands
TPV sealing provide strong Cable Grip, Strain Relief
and Superior Ingress Protection
With its unique design, provides excellent cable bending protection
Easy Assembly
Halogen Free
Accessories such as locknut and o-ring must be ordered separately.

Attachments

Technical Datasheet

Declaration of Conformity

Product Order Detail

Description

Entry Thread Size	Light Grey RAL7035 Code	Cable Range		H	GL	Wrench
Entry Thread Size	Light Grey RAL7035 Code	Inch	mm.	mm	mm	mm
PG7	PSCG01-L	.12-.26	3-6,5	57	8	15
PG9	PSCG02-L	.15-.32	4-8	70	8	19
PG11	PSCG03-L	.19-.39	5-10	81	8	22
PG13,5	PSCG04-L	.15-.39	4-10	89	9	24
PG13,5	PSCG05-L	.23-.47	6-12	89	9	24
PG16	PSCG06-L	.39-.55	10-14	107	9	27
PG21	PSCG07-L	.35-.67	9-17	124	11	33
PG21	PSCG08-L	.51-.71	13-18	124	11	33
M12x1,5	MSCG01-L	.12-.26	3-6,5	57	8	15
M16x1,5	MSCG02-L	.15-.32	4-8	70	8	19
M16x1,5	MSCG03-L	.19-.39	5-10	81	10	22
M20x1,5	MSCG04-L	.15-.39	4-10	89	10	24
M20x1,5	MSCG05-L	.23-.47	6-12	89	10	24
M20x1,5	MSCG06-L	.39-.55	10-14	107	10	27
M25x1,5	MSCG07-L	.35-.67	9-17	124	10	33
M25x1,5	MSCG08-L	.51-.71	13-18	124	10	33
