PP (Polypropylene) V0 Flexible Conduit

Name: PP (Polypropylene) V0 Flexible Conduit - OnElecs
SKU: OR
Availability: InStock

SKU: OR

₺0,00

Only dealers can see the prices. Click here for application

EN61386-21-22 Approved
Material: PP based Thermoplastic
Compression Resistance: 320 / 750 Newton 60 Sec. 23±2°C
Impact Resistance: 1 kg. / 2 kg. -100mm. -25°C
Temp range: -25°C +60°C.
Flame Retardant: V0 EN61386-21-22 Self-extinguishing, Halogen Free
Main usage: Electrical Installations, Public
Buildings,Construction, Industries where high
mechanical protection is required
Colors: Any color available upon request

Attachments

Technical Datasheet

Declaration of Conformity

Product Order Detail

Description

Code		Nominal Size	Size (mm.)		Coil Length (mt.)
320N	750N	Nominal Size	Inner	Outer	Coil Length (mt.)
OR1-016	OR3-016	16		16	100
OR1-020	OR3-020	20		20	100
OR1-025	OR3-025	25		25	50
OR1-032	OR3-032	32		32	50
OR1-040	OR3-040	40		40	50
OR1-050	OR3-050	50		50	25

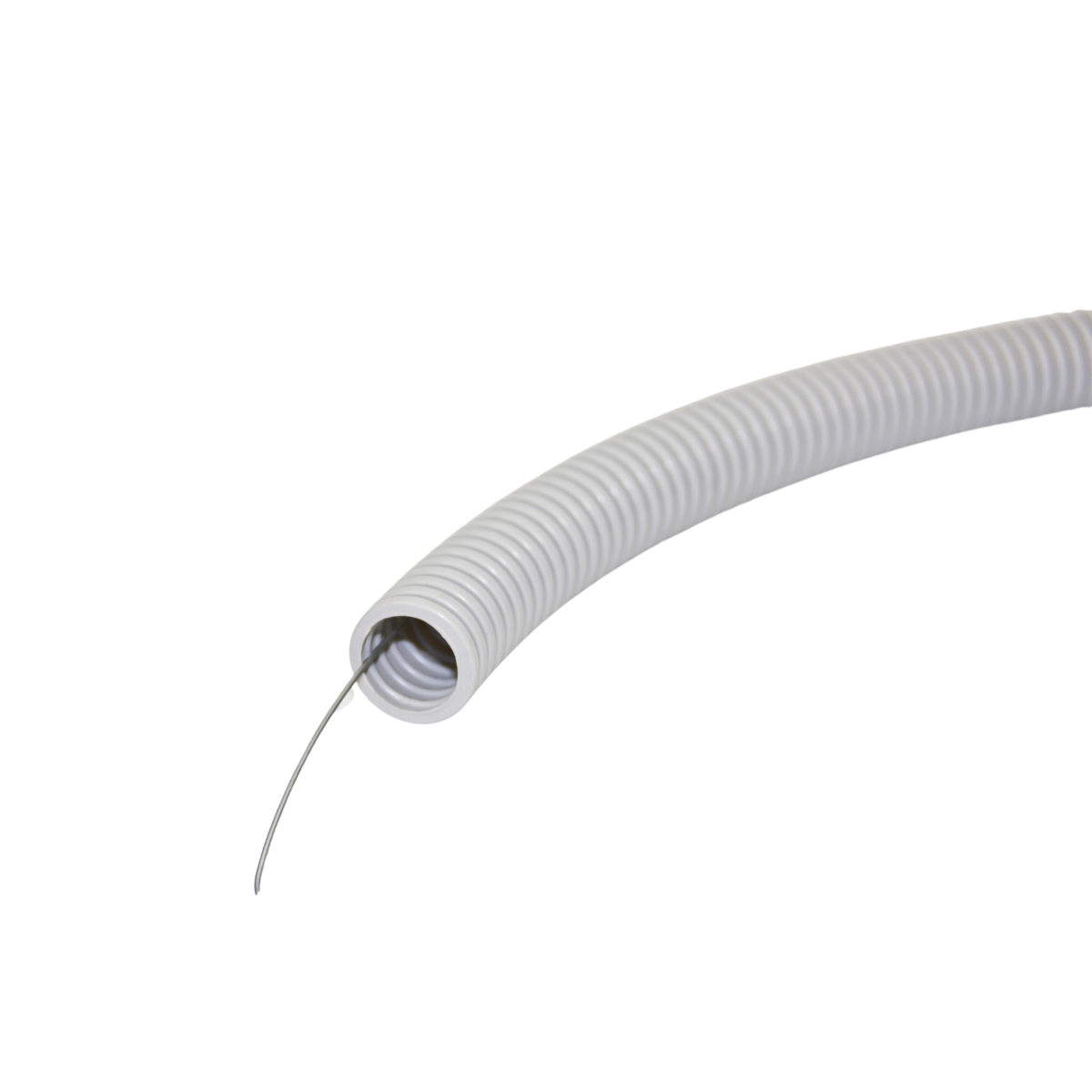

This product can also be supplied with a draw wire. Please add “dw” after part code
For other color Please add color name “OR1-025-Grey” after part code.
