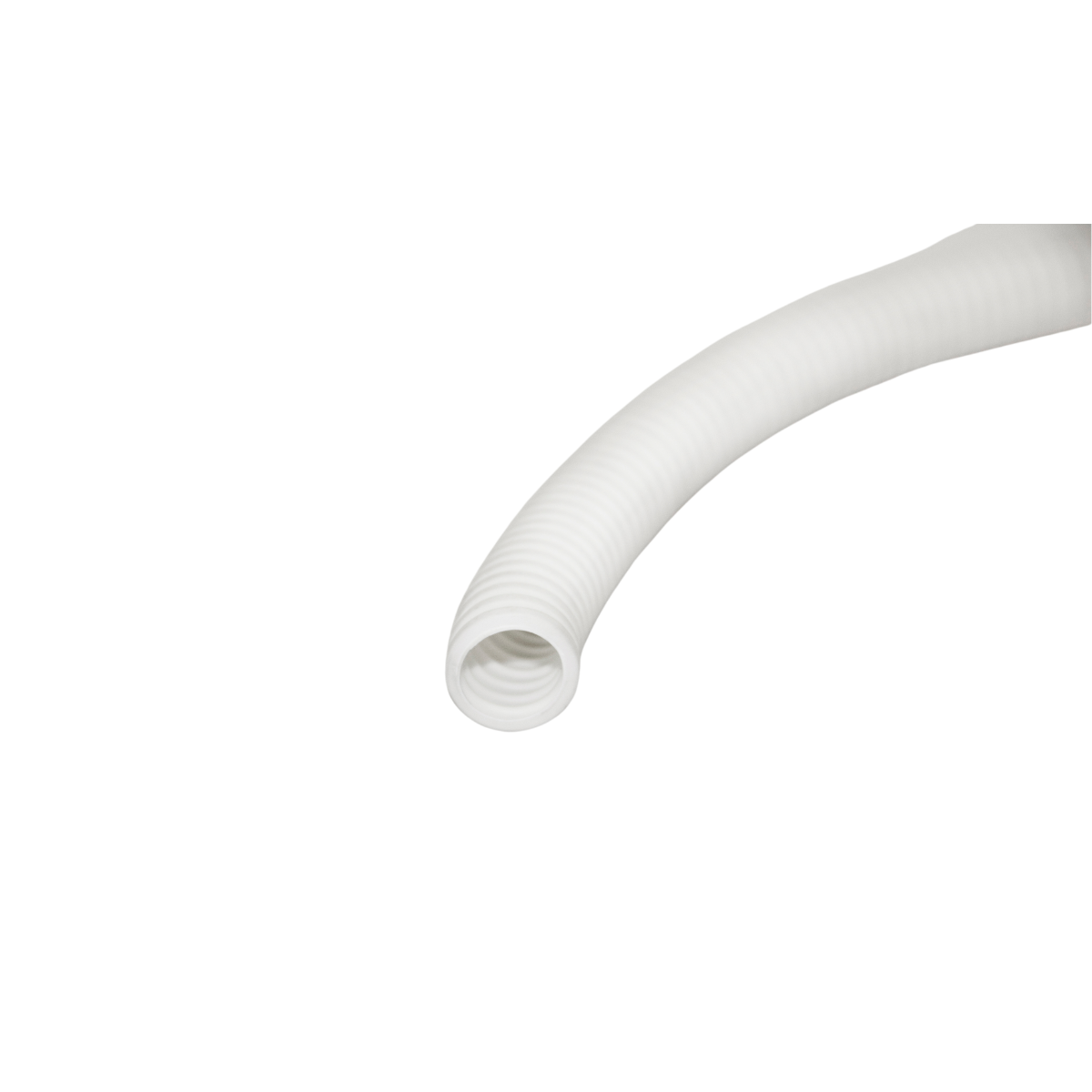

PP (Polypropylene) V0 LSF Flexible Conduit

Name: PP (Polypropylene) V0 LSF Flexible Conduit - OnElecs
SKU: OS
Availability: InStock

SKU: OS

₺0,00

Only dealers can see the prices. Click here for application

EN61386-21-22 Approved
Material: PP based Thermoplastic
Compression Resistance: 320 / 750 Newton 60 Sec. 23±2°C
Impact Resistance: 1 kg. / 2 kg. -100mm. -25°C
Temp range: -25°C +60°C.
Flame Retardant: V0 EN61386-21-22 Low Smoke Fume, Self-extinguishing, Halogen Free
Main usage: Electrical Installations, Public
Buildings,Construction, Industries where high
mechanical protection is required
Colors: Any color available upon request

Attachments

Technical Datasheet

Declaration of Conformity

Product Order Detail

Description

Code		Nominal Size	Size (mm.)		Coil Length (mt.)
320N	750N	Nominal Size	Inner	Outer	Coil Length (mt.)
OS1-016	OS3-016	16		16	100
OS1-020	OS3-020	20		20	100
OS1-025	OS3-025	25		25	50
OS1-032	OS3-032	32		32	50
OS1-040	OS3-040	40		40	50
OS1-050	OS3-050	50		50	25

This product can also be supplied with a draw wire. Please add “dw” after part code
For other color Please add color name “OS1-025-Grey” after part code.
