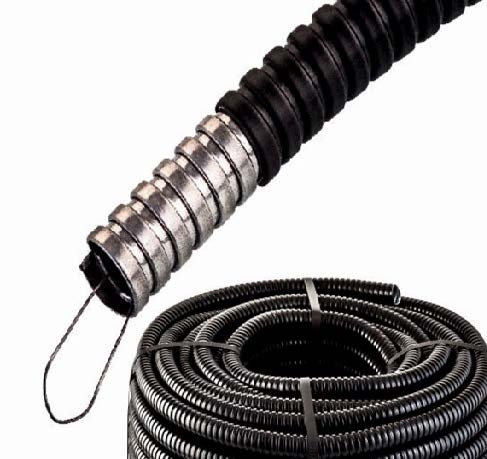

PVC Coated Steel Conduits

Name: PVC Coated Steel Conduits - OnElecs
SKU: OPGSC
Availability: InStock

SKU: OPGSC

₺0,00

Only dealers can see the prices. Click here for application

Material: PVC, self extinguishing / LSF (on request)
Main usage: Applications in machine tool and
connections for general wiring where light mechanical
stress can be obtained.
Temp range: -20°C till +80°C
Protection: IP40
Standards: BS EN 61386 High Impact Resistance
Colour: Black (Grey or other color on request)
• Full-Shrink packing

Attachments

Technical Datasheet

Declaration of Conformity

Product Order Detail

Description

Code	Code		Inner & Outer Dia. (mm.)	Coil Size (mt.)
Code	Metric	NPT	Inner & Outer Dia. (mm.)	Coil Size (mt.)
OPGSC7	12		7,5-11,5	50
OPGSC9	16	1/4′	9-13	50
OPGSC11	16	3/8′	11-15	50
OPGSC16	20	1/2′	16-20	50
OPGSC21	25	3/4′	21-25	50
OPGSC26	32	1′	26-31	25
OPGSC35		1 1/4′	35-40	25
OPGSC37	40		37-42	25
OPGSC40	50	1 1/2′	40-45	25
OPGSC51	63	2′	51-56	25
OPGSC63		2 1/2′	63-68	25
OPGSC75		3′	75-83	25

This product can also be supplied with a draw wire. Please add “dw” after part code.
Other coil sizes available upon request.Please add requested coil size after part code.
