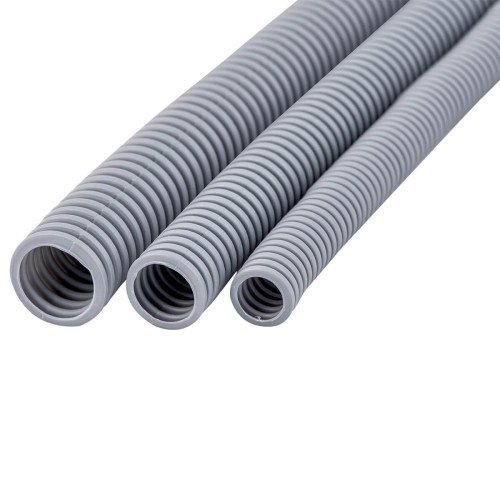

PVC Flexible Conduit (Self-extinguishing)

Name: PVC Flexible Conduit (Self-extinguishing) - OnElecs
SKU: OC
Availability: InStock

SKU: OC

₺0,00

Only dealers can see the prices. Click here for application

EN61386-21-22 Approved
Material: PVC based Thermoplastic
Compression Resistance: 320 / 750 Newton 60 Sec. 23±2°C
Impact Resistance: 1 kg. / 2 kg. -100mm. -25°C
Temp range: -25°C +60°C.
Flame Retardant: Self-extinguishing
Main usage: Electrical Installations, Public
Buildings,Construction, Industries where high
mechanical protection is required
Colors: Any color available upon request

Attachments

Technical Datasheet

Declaration of Conformity

Product Order Detail

Description

Code		Nominal Size	Size (mm.)		Coil Length (mt.)
320N	750N	Nominal Size	Inner	Outer	Coil Length (mt.)
OC1-016	OC3-016	16		16	100
OC1-020	OC3-020	20		20	100
OC1-025	OC3-025	25		25	50
OC1-032	OC3-032	32		32	50
OC1-040	OC3-040	40		40	50
OC1-050	OC3-050	50		50	25
OC1-063	OC3-063	63		63	15

This product can also be supplied with a draw wire. Please add “dw” after part code
For other color Please add color name “OC1-025-Grey” after part code.
