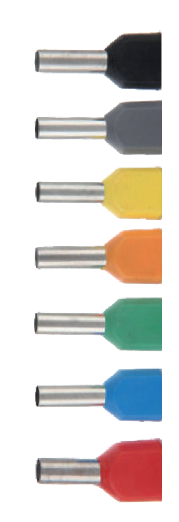

Twin Cord End Terminals

SKU: TCET

₺0,00

Only dealers can see the prices. Click here for application

Material: Copper (nickel plated)
Nylon (Polyamide) for Insulated part
Temperature Range: -40° to +105
Standard: DIN46228

Attachments

Technical Datasheet

Declaration of Conformity

Product Order Detail

Description

Code	Dimensions		German Norm	France Norm	Packing Unit (bag/pc.)
Code	F mm.	L mm.	German Norm	France Norm	Packing Unit (bag/pc.)
TCET-0.50	8	14	Orange	White	1000
TCET-0.75	8	14	White	Blue	500
TCET-1.00	8	14	Yellow	Red	500
TCET-1.50	8	14	Red	Black	500
TCET-2.50	10	14	Blue	Grey	250
TCET-4.00	12	17	Grey	Orange	200
TCET-6.00	14	20	Black	Green	100
TCET-10	14	27	Beige	Brown	50
TCET-16	14	31	Green	Beige	50

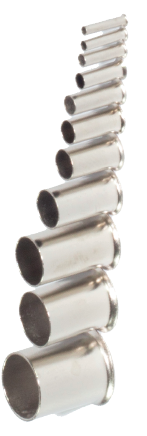

Non-Insulated Cord End Terminals

Code	Dimensions		Packing Unit (pc.)
Code	L mm.	LK mm.	Packing Unit (pc.)
NICET-0.50	10	8	2000
NICET-0.75	10	8	2000
NICET-1.00	10	8	2000
NICET-1.50	10	8	2000
NICET-2.50	12	8	2000
NICET-4.00	12	10	1000
NICET-6.00	12	10	500
NICET-10	15	12	200
NICET-16	15	12	200
NICET-25	16	16	100
NICET-35	16	16	100
NICET-50	20	20	50
